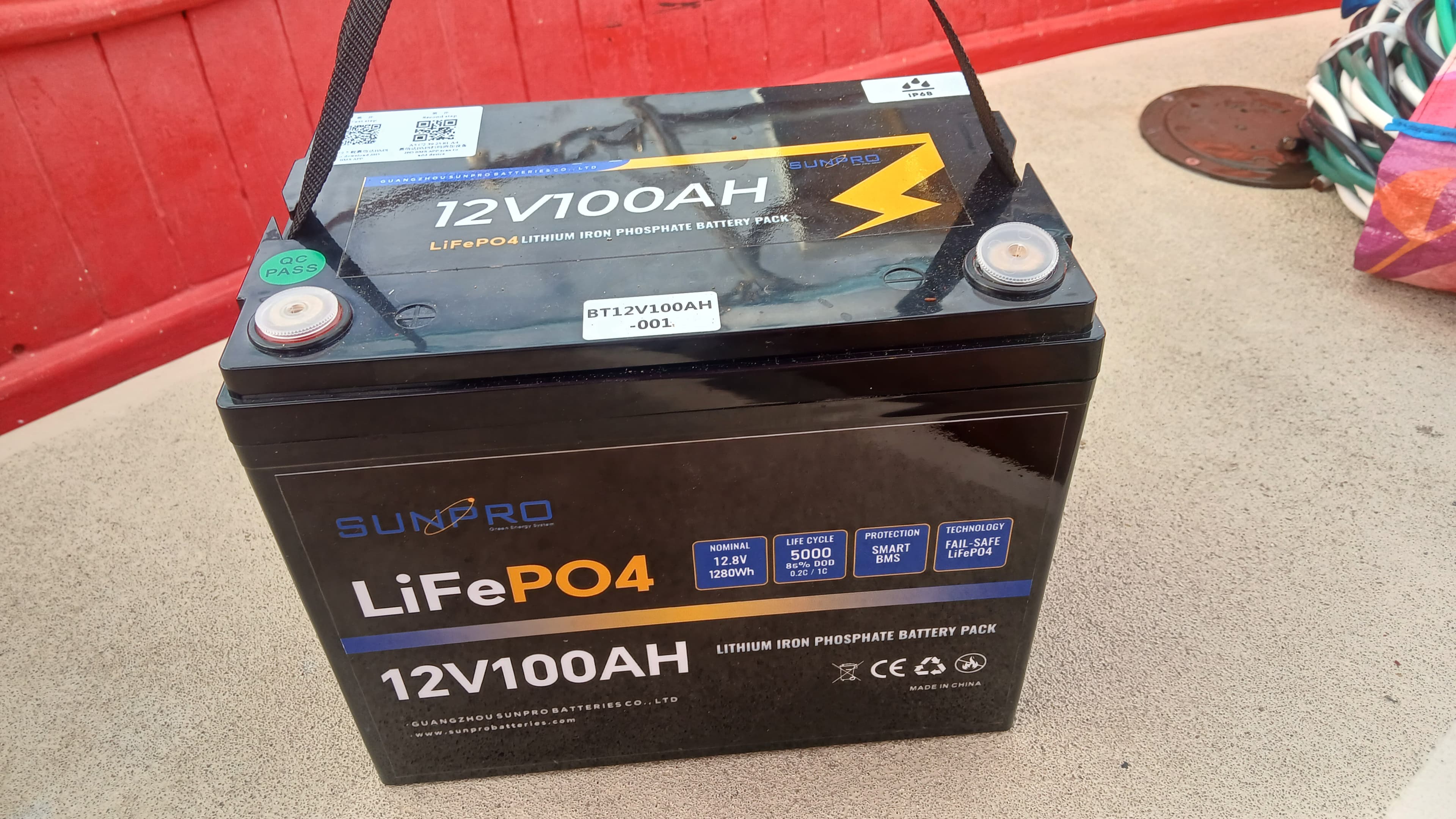

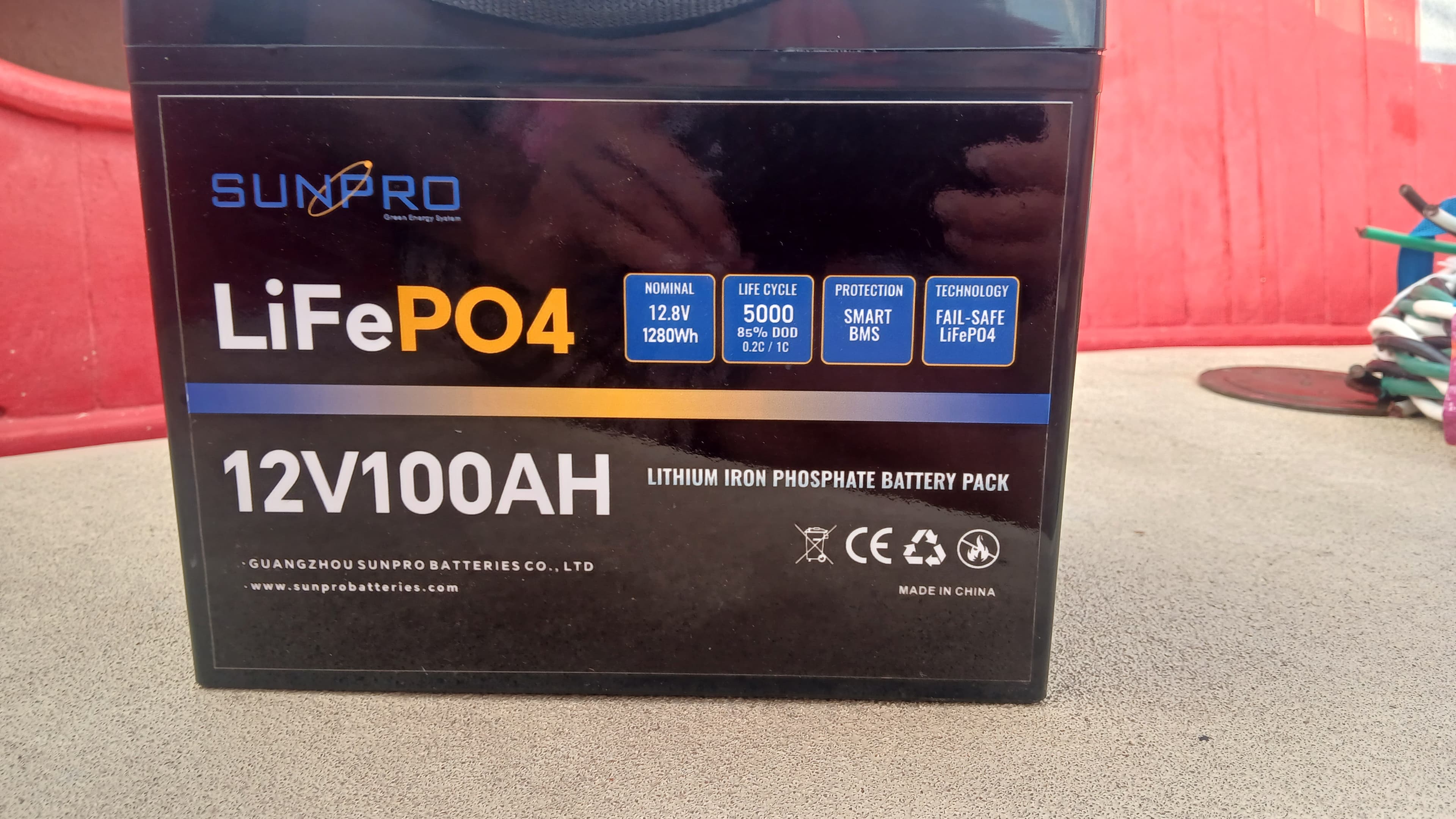

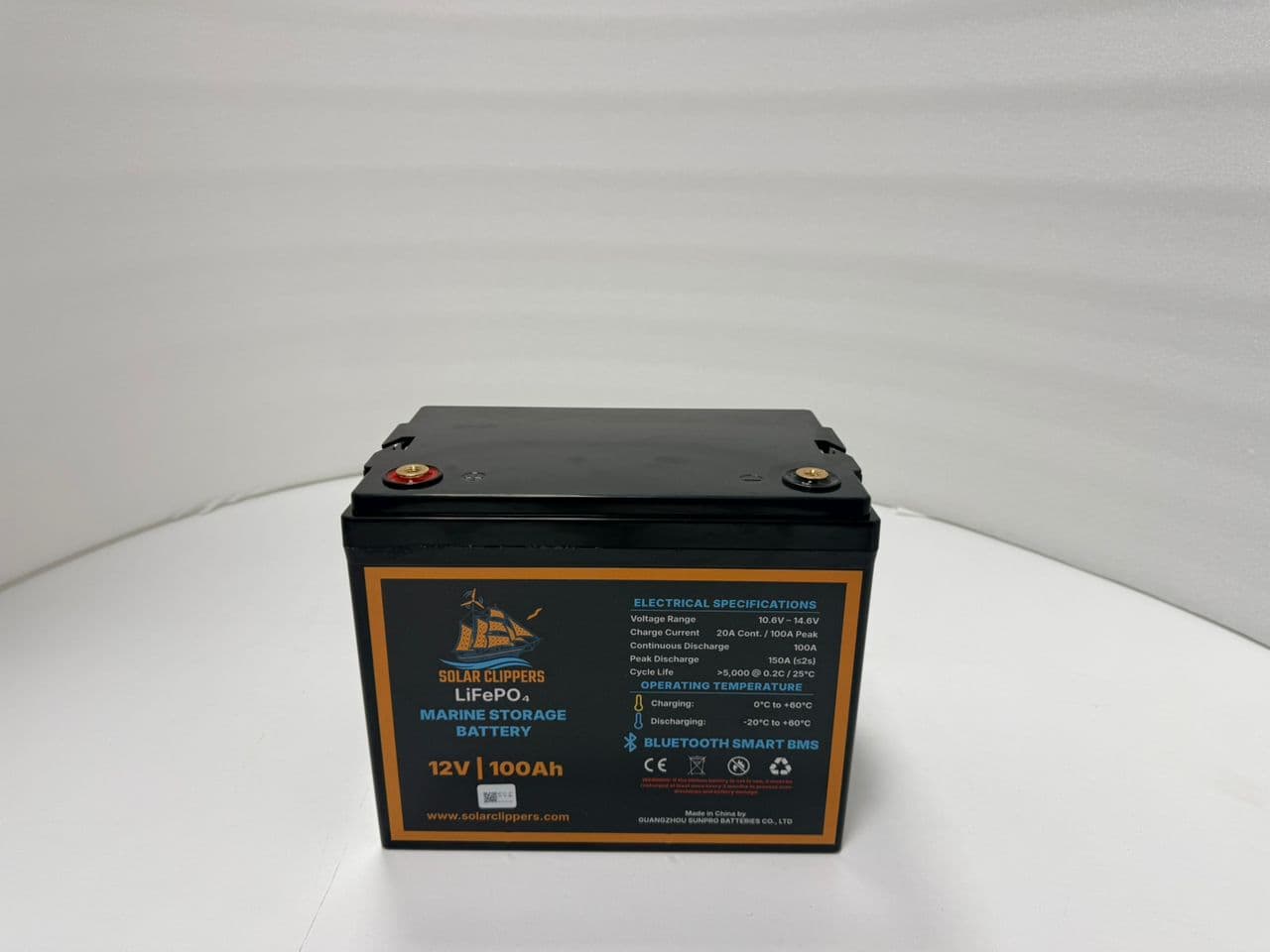

12V 100Ah LiFePO₄
Premium Marine LiFePO₄

12V 100Ah LiFePO₄

The ultimate 'Dedicated Clean Power' bank. Specifically designed to protect sensitive boat electronics (N2K, Computers, Audio) from DC spikes and harmonics generated by windlasses and large motors. Vibration resistant and salt-mist proof. Supports Isolated Ground DC-DC chargers.

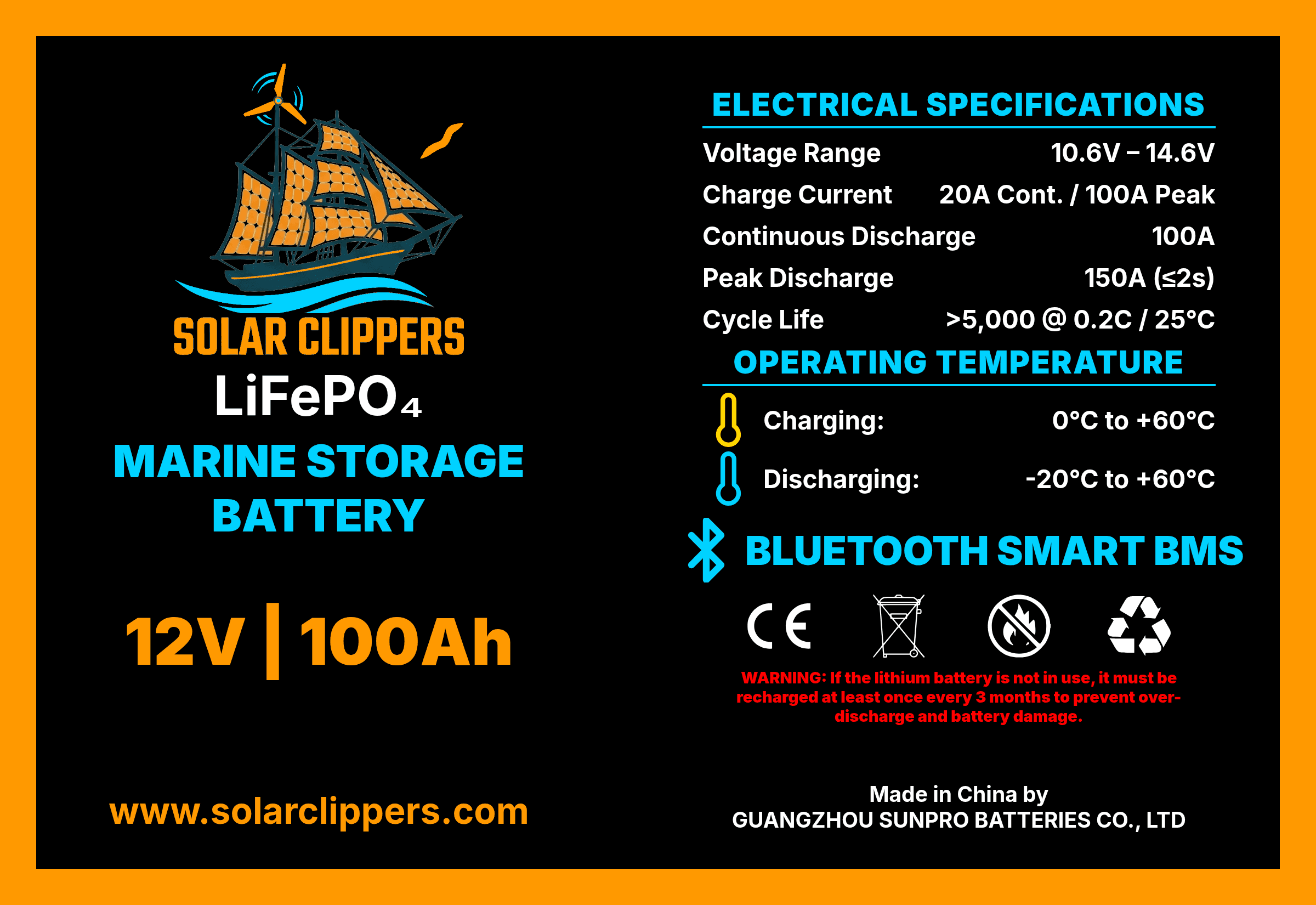

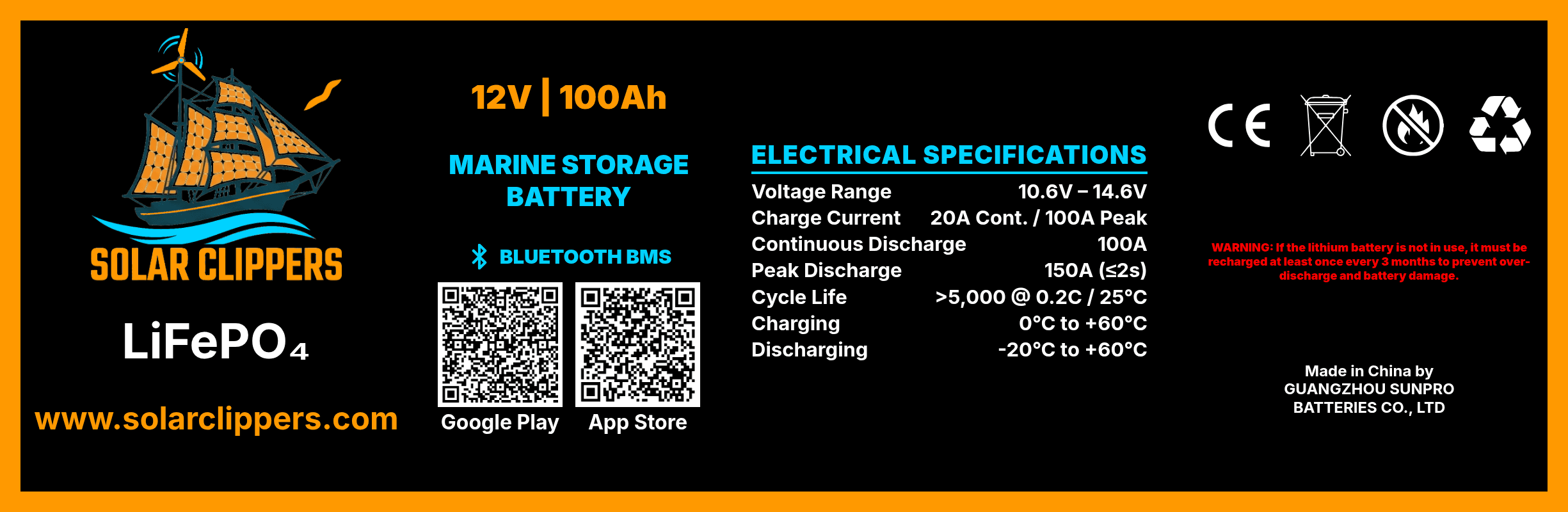

Technical Specifications

Nominal Voltage12.8V
Capacity100Ah
Energy1280Wh

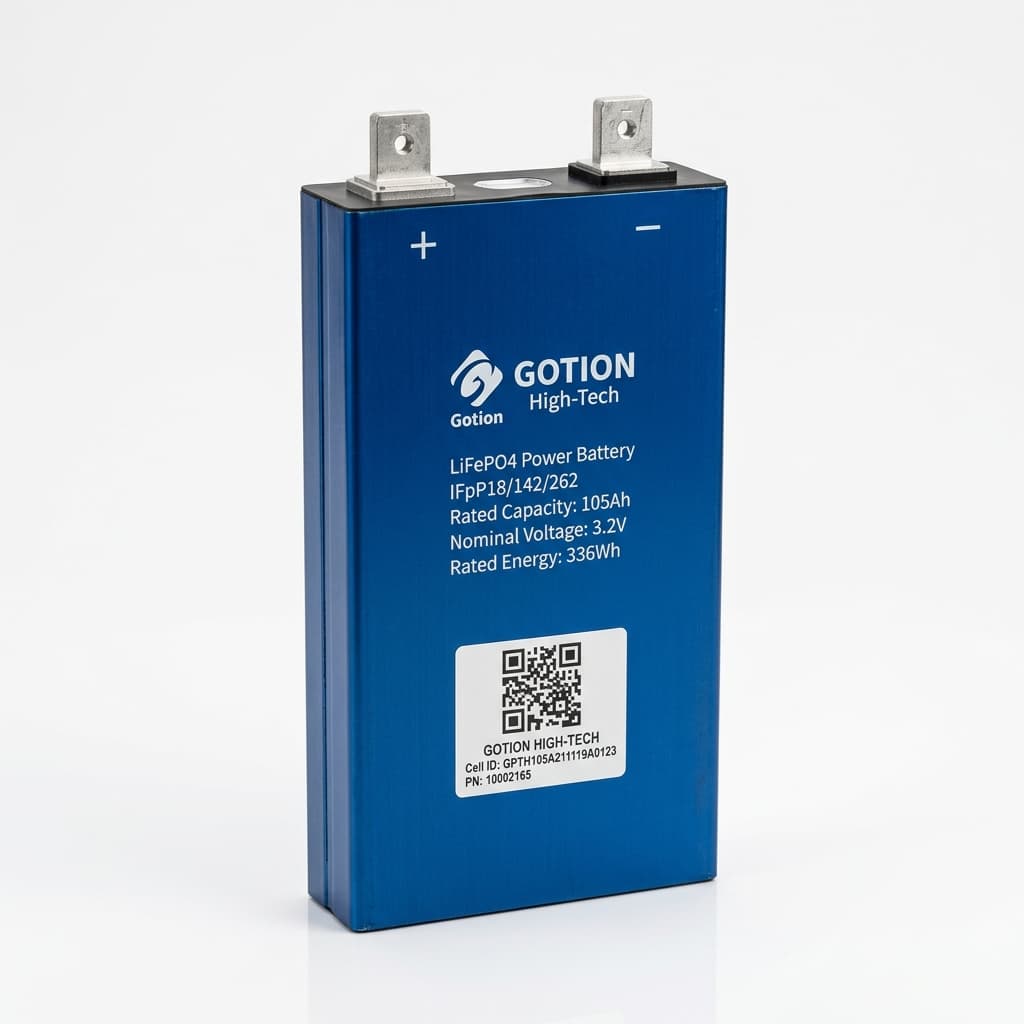

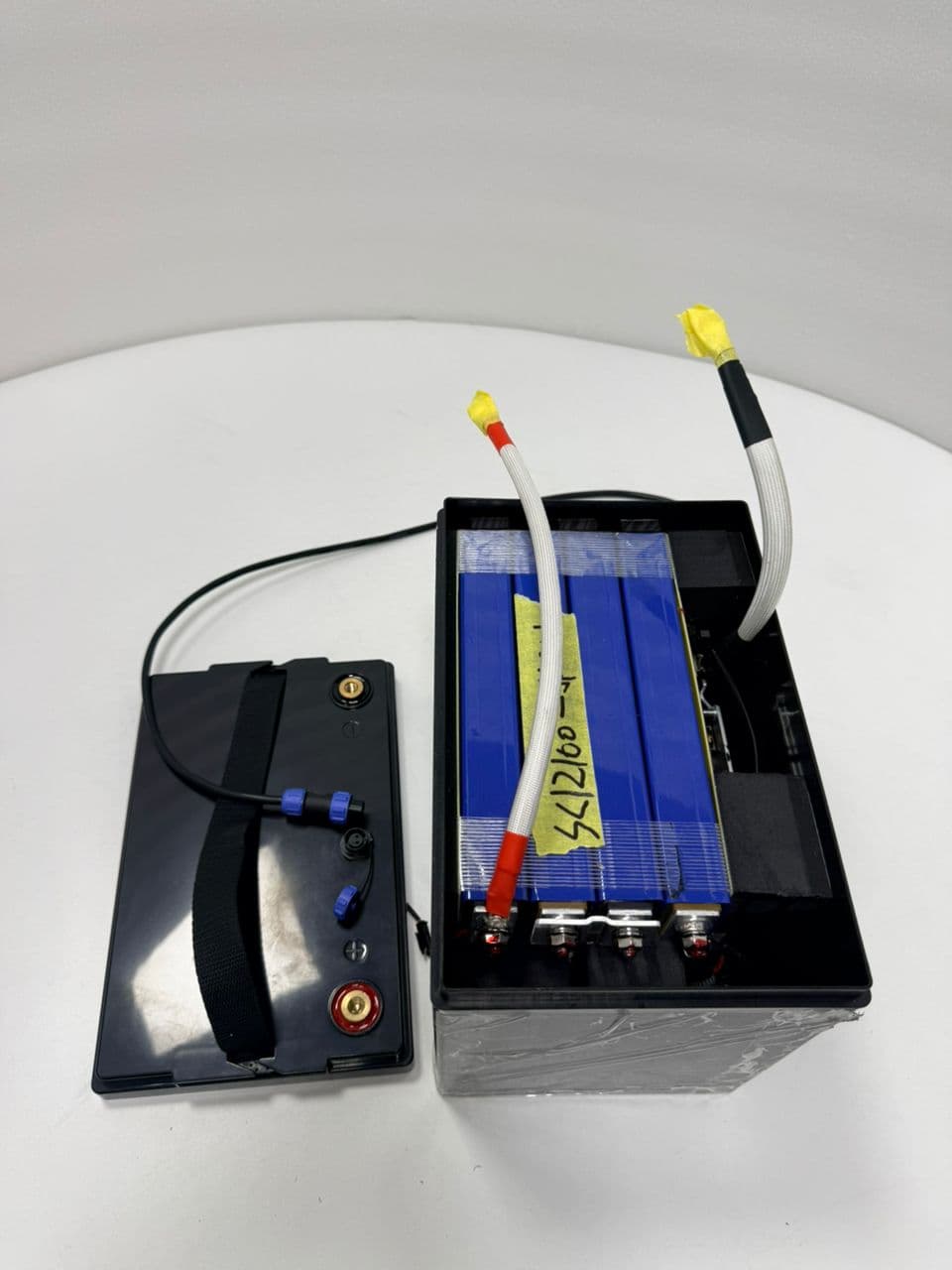

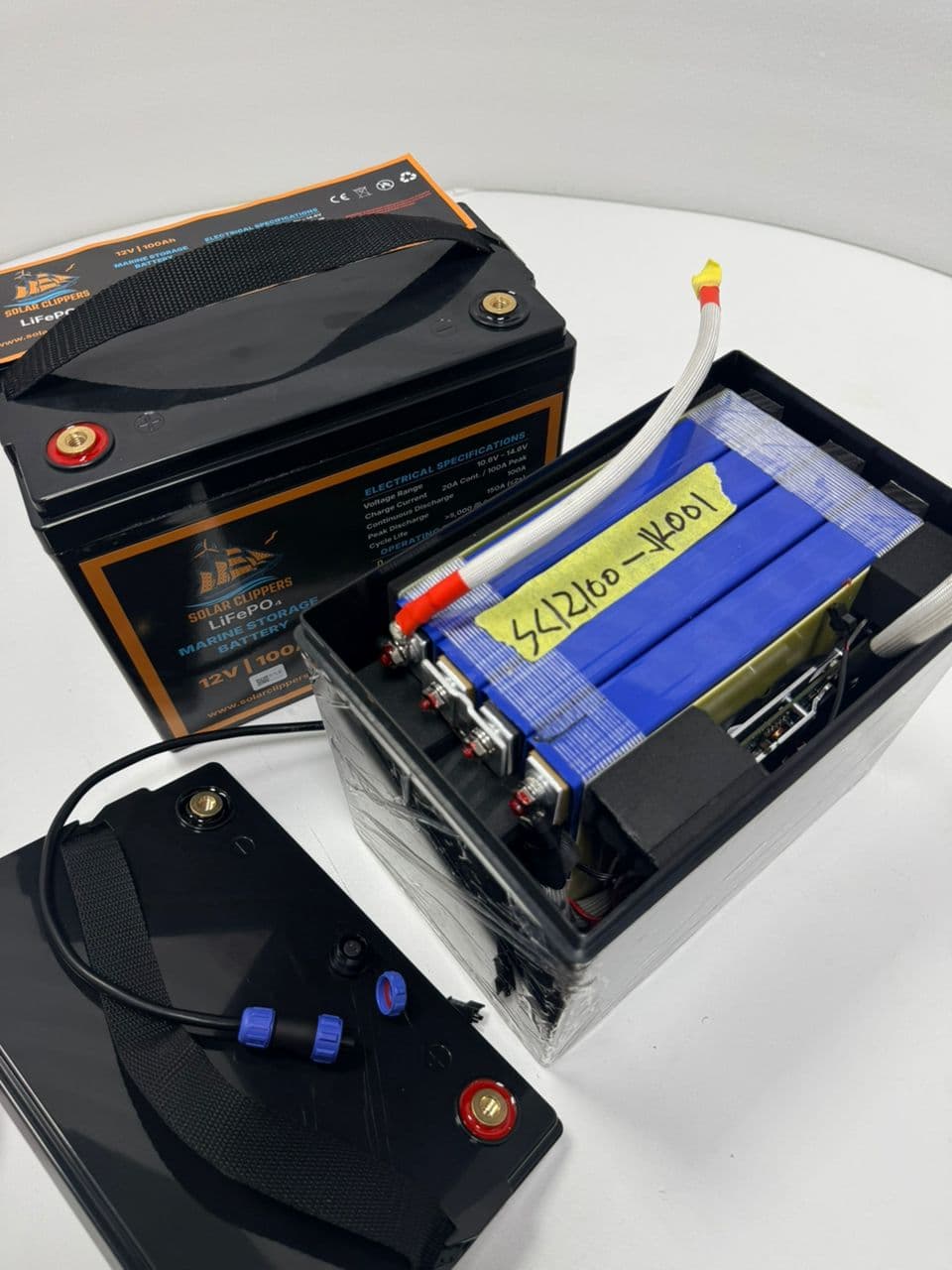

Cell TypeGotion 3.2V 105Ah (Grade A Prismatic)
Cycle Life>5,000 @ 0.2C / 25°C
Voltage Range10.6V – 14.6V
BMS TypeBluetooth Smart BMS (XiaoXiang)
iOS AppApp StoreAndroid AppGoogle Play

Physical Specifications

Dimensions260 x 168 x 209 mm
Weight11 kg
DatasheetBack to Batteries

Performance

Continuous Charge/Discharge Current100A
Peak Charge/Discharge Current150A (<2 sec)
